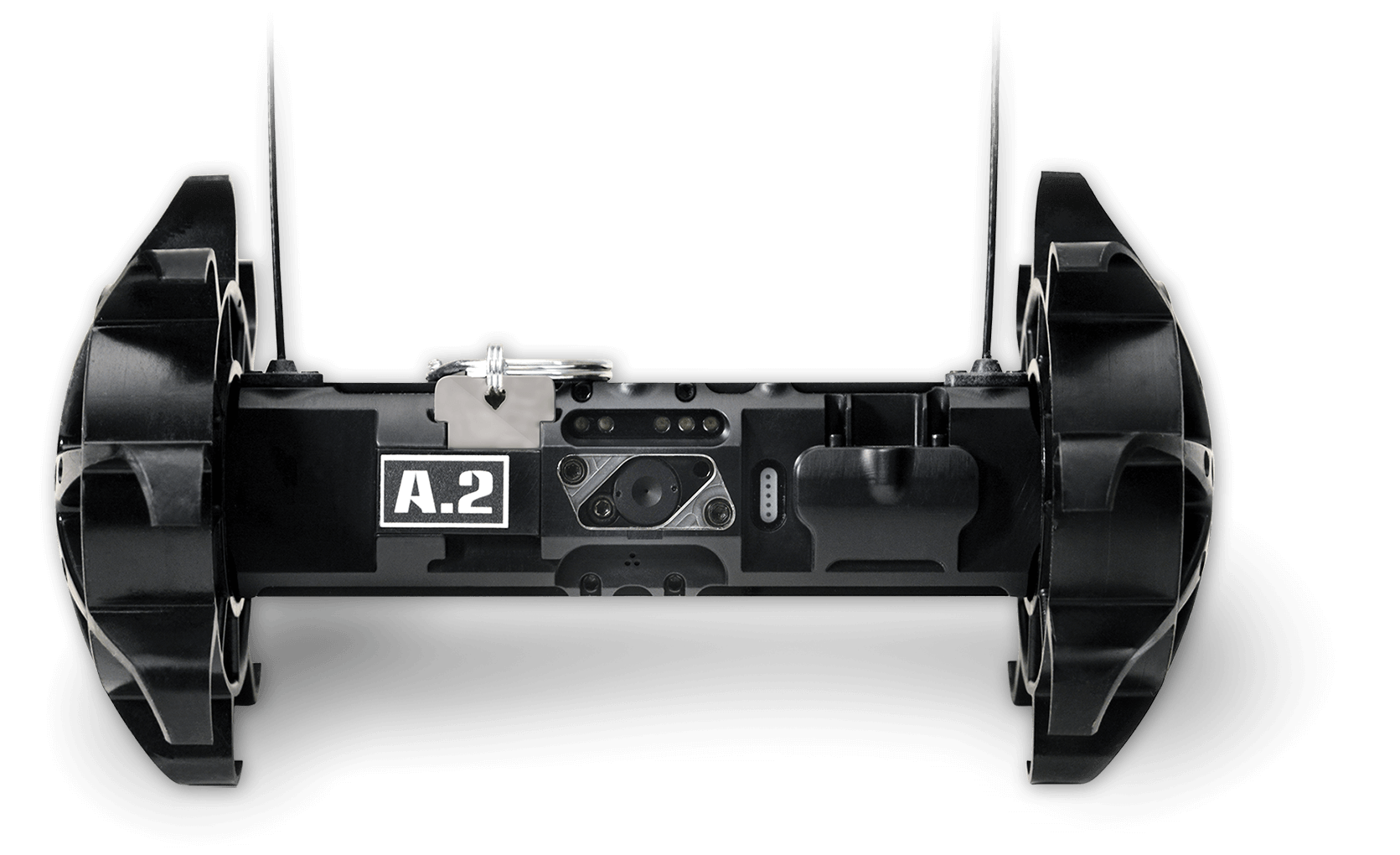

Throwbot® 2 Robot

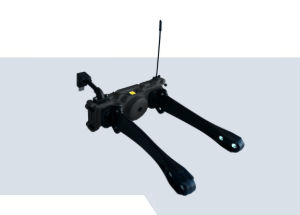

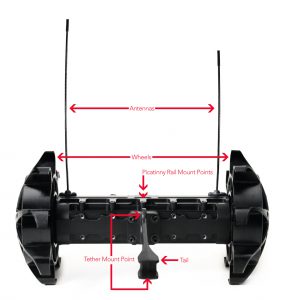

The Throwbot® 2 (TB2) robot is a throwable micro-robot platform that enables operators to obtain instantaneous video and audio reconnaissance within indoor or outdoor environments.  Designed to withstand repeated drops of up to 30 feet (9 m) onto concrete, the Throwbot® 2 robot can be thrown into hazardous situations in order to allow operators to quickly make informed decisions when seconds count.  This micro-robot is designed to be able to crawl over a variety of terrain, clearing obstacles up to 2″ (5 cm) tall.  Conversion kits are available which can increase the ability of the Throwbot® 2 robot to cross obstacles up to 4″ (10 cm) tall or to carry and tow a combined 4 lbs (1.8 kg) of payloads using integrated mount points or a Picatinny Rail accessory.



Once deployed, the robot can be directed to move through a structure and transmit realtime video and audio to the OCU II. These reconnaissance features can locate and identify subjects, confirm presence of hostages and reveal the room layout.

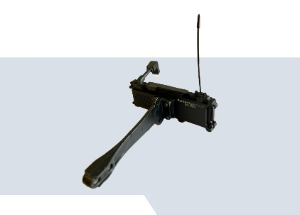

When used with a Recon Scout® SearchStick, the unit can function as a pole camera facilitating the inspection of attics, rooftops and crawl spaces.

Have a Question? Contact Us.

Key Throwbot® 2 Robot Features

ULTRA-QUIET

The Throwbot 2 robot is incredibly stealthy.  When configured with the Carry and Tow Conversion Kit, it is less than 59 dBa at 1 m.

DAY AND NIGHT OPERATION

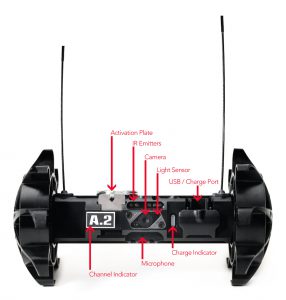

Equipped with a color camera and an infrared illumination system that automatically turns on when the ambient light is low.

AUDIO

Can transmit video and audio up to 150 feet (45m) through walls or 450 feet (137 m) outdoors line of sight, windows and doors to the OCU II.

WATER/DUST RESISTANT

IP66 and IP67 Compliant.

MULTIPLE FREQUENCIES

The robot may be specified in multiple predetermined frequency configurations allowing simultaneous operation in the same vicinity.

THROW-ABLE

Can be thrown as far as 120ft (36m) and withstand repeated 30-foot (9m) drops.

Specifications

RANGE

  • Outdoor Range (LOS): Tested to 450ft / 137m
  • Indoor Range (NLOS): Tested to 150ft / 45m
  • Drop Shock Resistance: 30ft / 9.1m
  • Throw Throw Resistance: 120ft / 36m
  • Max Obstacle Climb: 2in / 5cm
  • Speed: 1.8ft/s / 0.6m/s
  • Payload Capacity: NONE



RUN TIME

  • Typical: 110 minutes
  • Observation Mode: 160 minutes



IMAGE SENSOR

  • Type: Color
  • Field of View: 60 degrees
  • Frame Rate: 30fps
  • Water/Dust Protection: IP66, IP67
  • IR Illumination: 25ft / 7.62m
  • Audio: One-way, listening only



MECHANICAL SPECS

  • Weight: 1.3lbs / 0.6kg
  • Length: 8.3in / 21.1cm
  • Width: 7.9in / 20.1cm
  • Height: 4.5in / 11.4cm



DOWNLOAD

PRODUCT IDENTIFICATION

This User Manual applies to the ReconRobotics® Throwbot® 2 robot and Operator Control Unit II (OCU II).

DOWNLOAD
